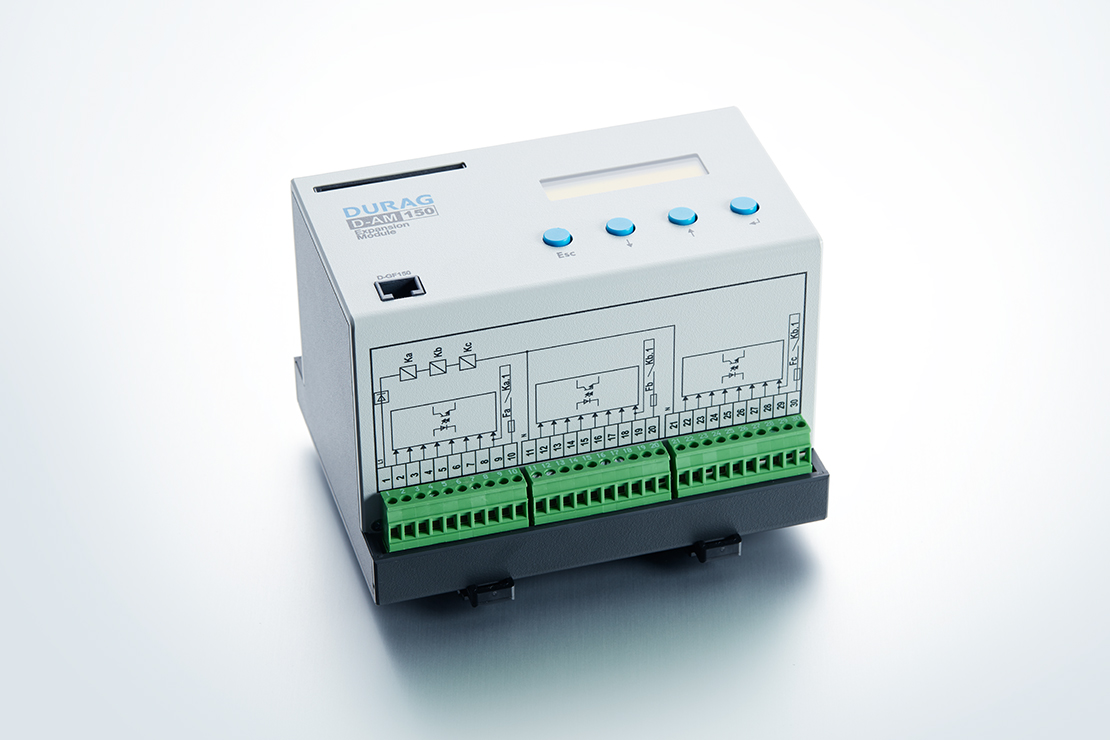

D-AM 150 display module
zoom_out_map
search
D-AM 150 display module

D-AM 150
Display module and first-out annunciator

Module for displaying all statuses, program steps and error messages in plain text and for troubleshooting using first-out annunciation.


Functionality: First-out annunciator

  • First-out annunciator with 24 inputs in three groups
  • Fault memory
  • Plain text for D-GF 150 burner control
  • Fieldbus communication (Modbus RTU) for up to 32 devices
  • Operating hours and cycle counter
  • Simple programming
  • Can be combined with both D-GF 150 and D-GF 150-MB
  • Shortened time for commissioning of combustion equipment due to first-out annunciation
  • D-GF 150 expansion
  • Petrochemistry
  • High-speed steam-raising boiler
  • Zone heating
  • Technical data
Operating modeIntermittent operation and continuous operation
Functional SafetyFail-safe first-out annunciator
Local displayAlphanumeric LC display
Inputs230/115 VAC
OutputsMax. 250 VAC
Data outputModbus RTU
Electrical data115/230 VAC, approx. 20 W
Ambient conditions-20 … +60 °C
Degree of protectionIP20
Dimensions170 x 130 x 150 mm
WeightApprox. 1.2 kg
Installation DIN rail TS35
