Features

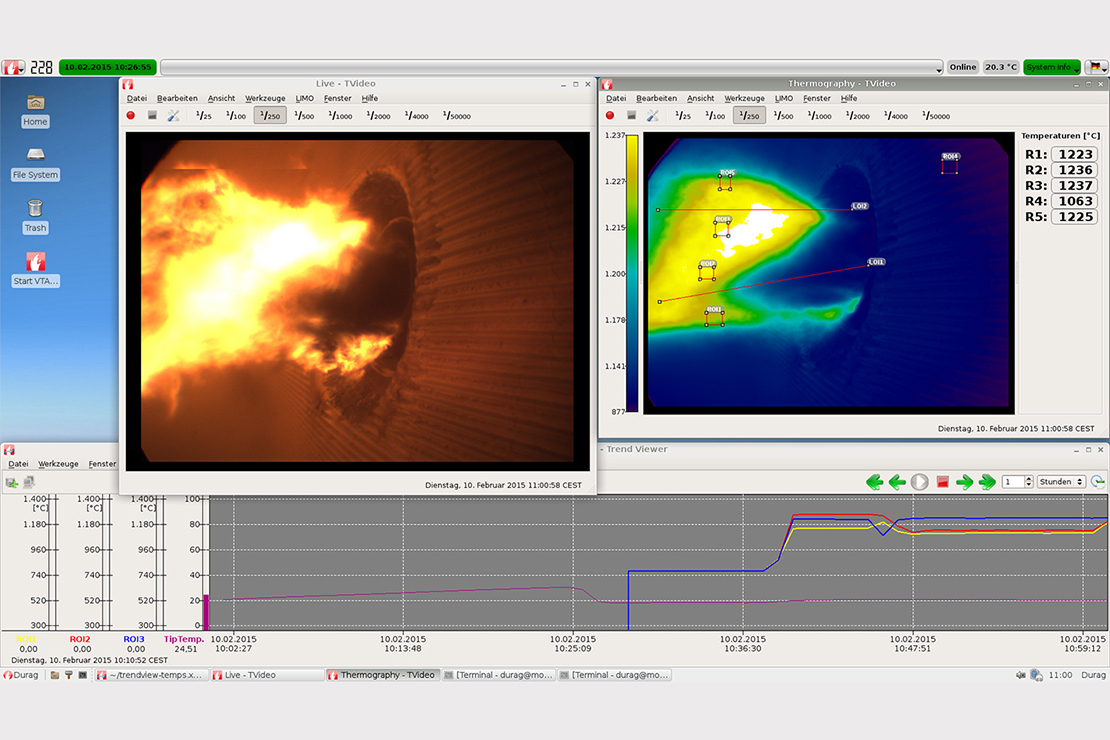

- Display of live video and thermography image
- Freely definable regions of interest (ROI) for temperature measurements
- Video recording on hard disc
- User-definable historical trend display
- Limo function (line of interest) and history
Benefits

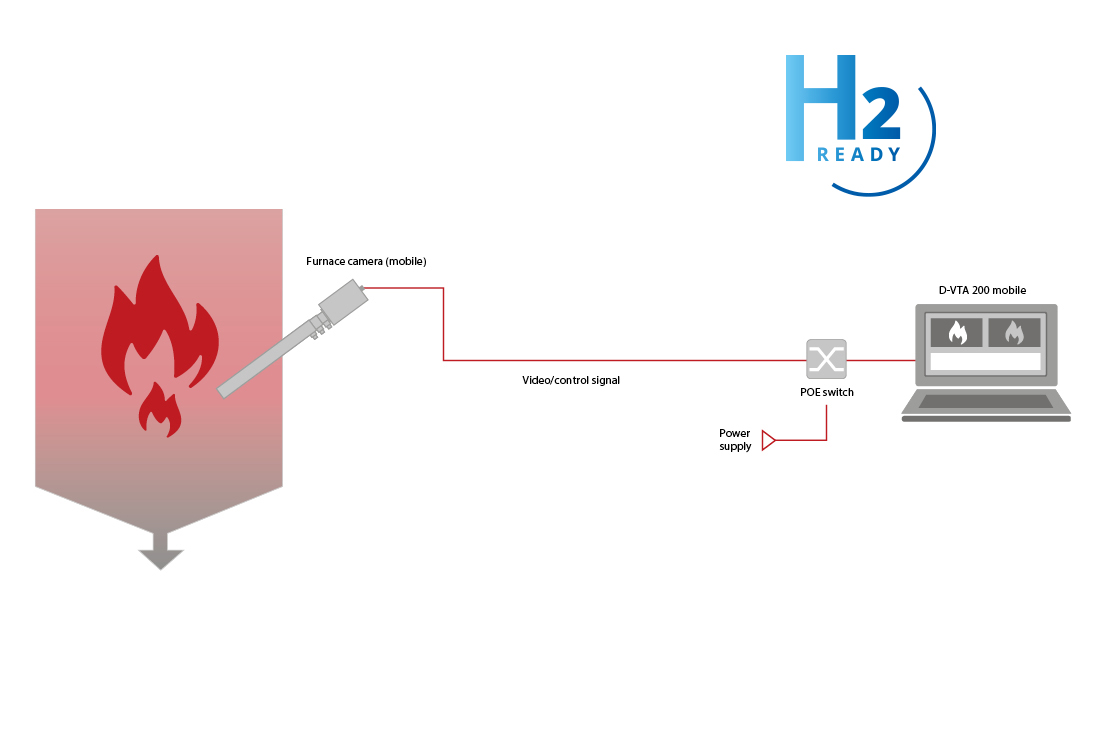

- Mobile and flexible video and thermography system for inspection with a mobile furnace camera
- Document and compare: Enables observation of a process from different positions. The results can be easily saved as video files, screenshots or data files for later analysis and comparison
- Can be used for test and demo purposes, support in determining the best installation positions for a combustion chamber camera to be permanently installed
- Optionally with a sturdy carrying case for the notebook including accessories
Applications
- Demo and test of a video and thermography system
- Comparison and optimization of the individual burner flames of one or more power plant boilers
Technical Data
- Technical data
| Brief product description | Compatible with all mobile combustion chamber cameras in the D-FS2… series Notebook with 15″ displayIncluding PoE Ethernet switch |
|---|---|
| Electrical connection | 100 … 240 VAC, 50 … 60 Hz < 100 VA |
| Ambient temperature | +1 … +40 °C |
| Weight | 3.2 kg (notebook only) |
Accessories
- Optional
| Tripod |
| Protective case |
| Offline thermography |
