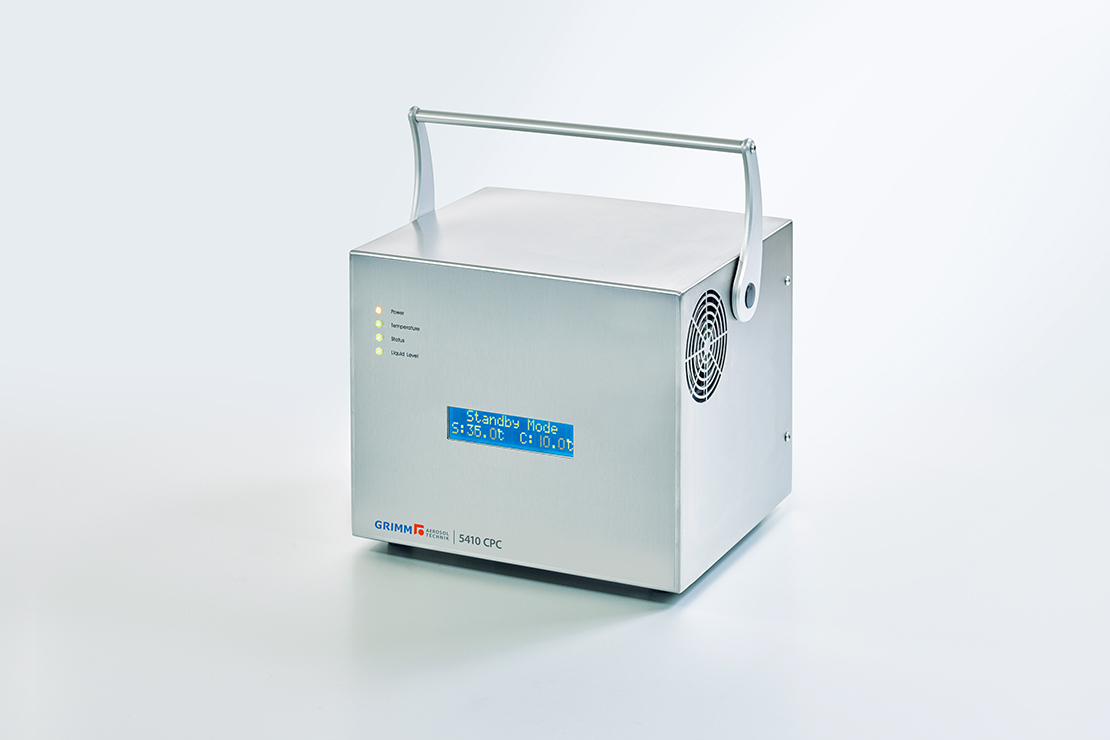

Basic condensation particle counter 5410

GRIMM CPC 5410
Basic condensation particle counter

Compact CPC for nanoparticle counting with optimized detection efficiency and response time.  Different calibrations possible, e.g. for real-time monitoring of UFP in ambient air according to CEN EN 16976:2024. Also available as GRIMM CPC 5412 with integrated sample air pump.


Functionality: Condensation particle counter

  • n-butanol based CPC
    The most reliable and widely used particle counter
  • 0.6 or 1.0 L/min sample flow
    Two versions to meet a wide range of experimental needs
  • Versatile use
    Supports multiple calibration options, including compliance with EN 16976:2024 and other relevant standards
  • Accurate nanoparticle counting
    Optimized condensation for precise results with droplet size control and continuous drainage
  • Effortless operation
    Simple start/stop functionality for stand-alone use and easy data storage via USB flash drive
  • Space-saving design
    A compact footprint for seamless integration into any laboratory setup
  • Traceable calibration
    Easily perform traceable calibrations with analog pulse output for direct access to raw data
  • Unique saturator shutter
    Ensures fast transport without butanol drying and eliminates any risk of optics contamination
  • Pressure-independent performance
    Sample flow controlled by critical orifice. Ready for external vacuum supply. Model CPC 5412 also available with integrated sample pump.
  • Fundamental aerosol research
  • Environmental and climate studies
  • Nanotechnology process monitoring
  • Studies on atmospheric nucleation
  • Nanoparticle growth, coagulation and transport
  • Filter testing
  • Technical data
Measuring principleCondensation particle counter
Measuring parameterParticle number concentration / cm³
Working fluidn-butanol (n-butyl alcohol)
CPC sample flow rateTwo versions available: 0.6 or 1.0 l/min
Particle concentration rangeSingle count mode: Up to 60,000 p/cm³ (1.0 l/min sample flow)Up to 100,000 particles/cm³ (0.6 l/min sample flow)Photometric mode: Up to 107 particles/cm³ *
Particle concentration accuracySingle count mode: > 95%Photometric mode: > 90%
Counting efficiencyMany configurations and calibrations availableD50 = 4nm (GRIMM standard)D50 = 10 nm (EN 16976:2024)D50 = 23 nm (PMP, Euro 5 and 6)D65 = 10 nm (PMP, Euro 7)
Linearity slope1 ±0.05
Particle size range4.0 nm (D50 measured with tungsten oxide particles) to greater 3 µm
Response time t10 … t90< 1.5 s (1.0 l/min sample flow)< 2.0 s (0.6 l/min sample flow)
Flow controlCritical orifices with stabilized temperature
External vacuum≤ 350 hPa at NPT **
Data output interval1 … 90 s (user selectable)
Compliance and certificationsListed in ACTRIS-compliant measuring devicesISO 27891:2015 (calibration of condensation particle counters, CPCs)EN 16976:2024 (standard method for determining the particle number concentration in ambient air)UN R No. 49 and 83 (PMP, motor vehicle emis- sions, EURO 5, 6 and 7)UN GTR No.24 (brake emissions)
Data recordingOn PC with GRIMM 5475 nano software, on USB flashdrive or direct USB / RS-232 read-out
ConnectivityUSB, USB flashdrive, RS-232, analog input for meteorological sensors, analog pulse output
Power supply110 … 240 VAC; 50 / 60 Hz; maximum 130 W
Power consumption30 W standby40 W standard operation80 W warm-up
Aerosol sample conditionsTemperature: –20 … 40 °C (–4 … 104 °F)Humidity: 0 … 95% RH, non-condensingAbsolute pressure range: 500 … 1,100 mbar
Transport and storage0 … 50 °C (32 … 122 °F), RH < 95%
Operating conditionsIndoor protected environmentTemperature: 10 … 40 °C (50 … 104 °F)Humidtity: 0 … 95% RH, non-condensingAbsolute pressure range: 790 … 1,100 mbar
Dimensions (h x w x d)23 x 25 x 29 cm (9 x 9.8 x 11.4 inch)
Weight8.9 kg (19.6 lbs)

* For short-term measurement; not available for 1.0 L/min version
** CPC 5412 model with integrated sample pump; no external vacuum needed

  • Optional
7813 - Small diffusion dryer
7814 - Large diffusion dryer
4042397 - RS232-RJ45 network adapter
