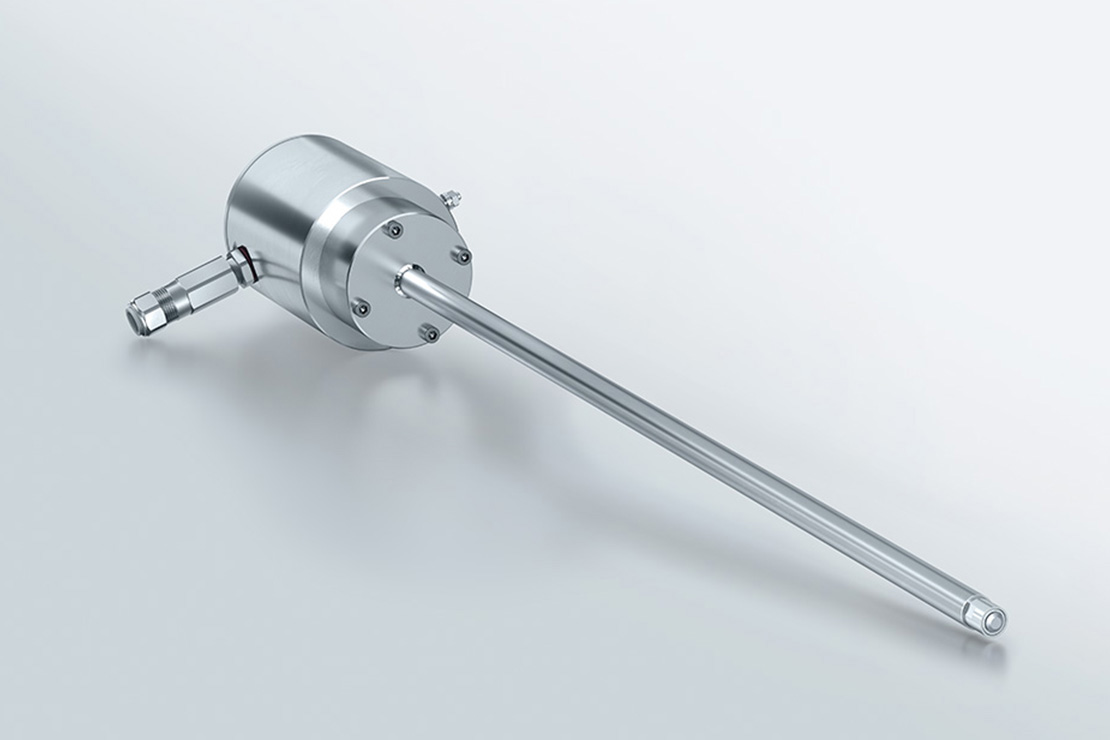

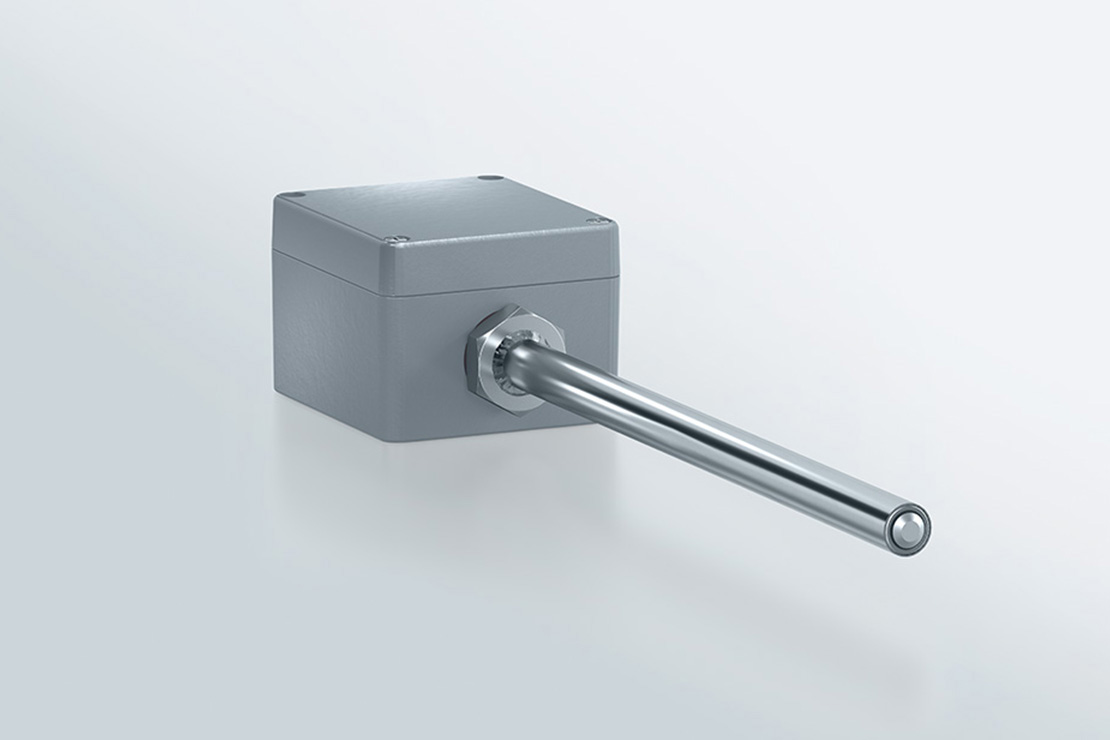

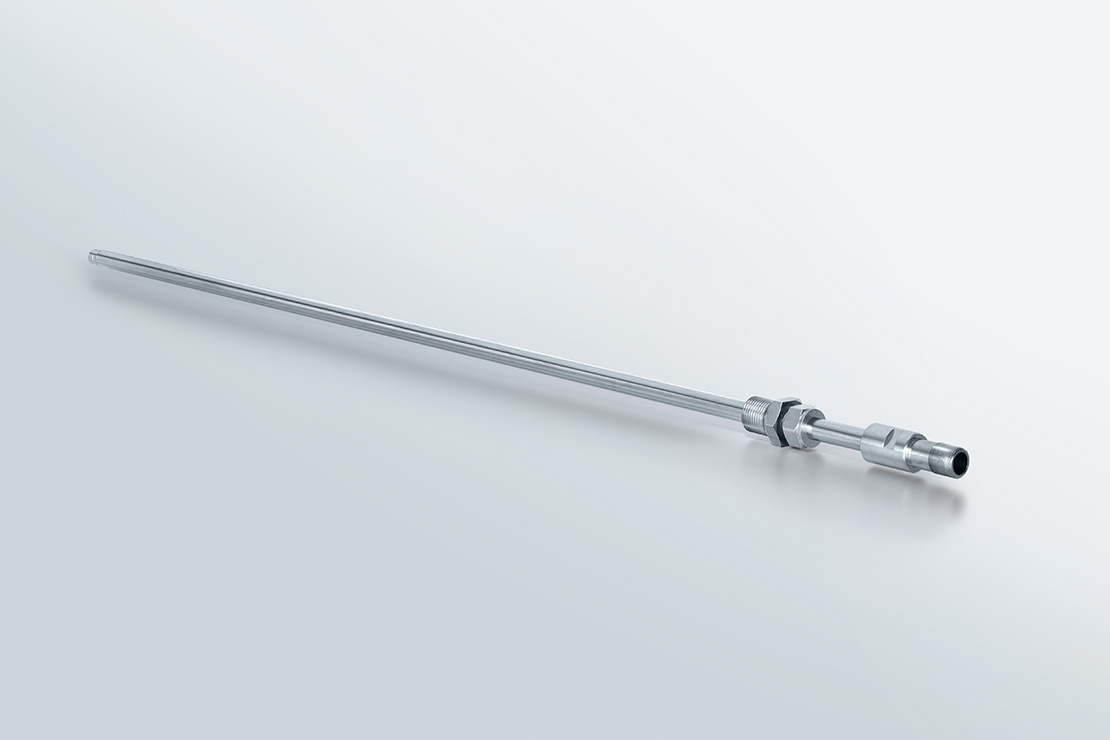

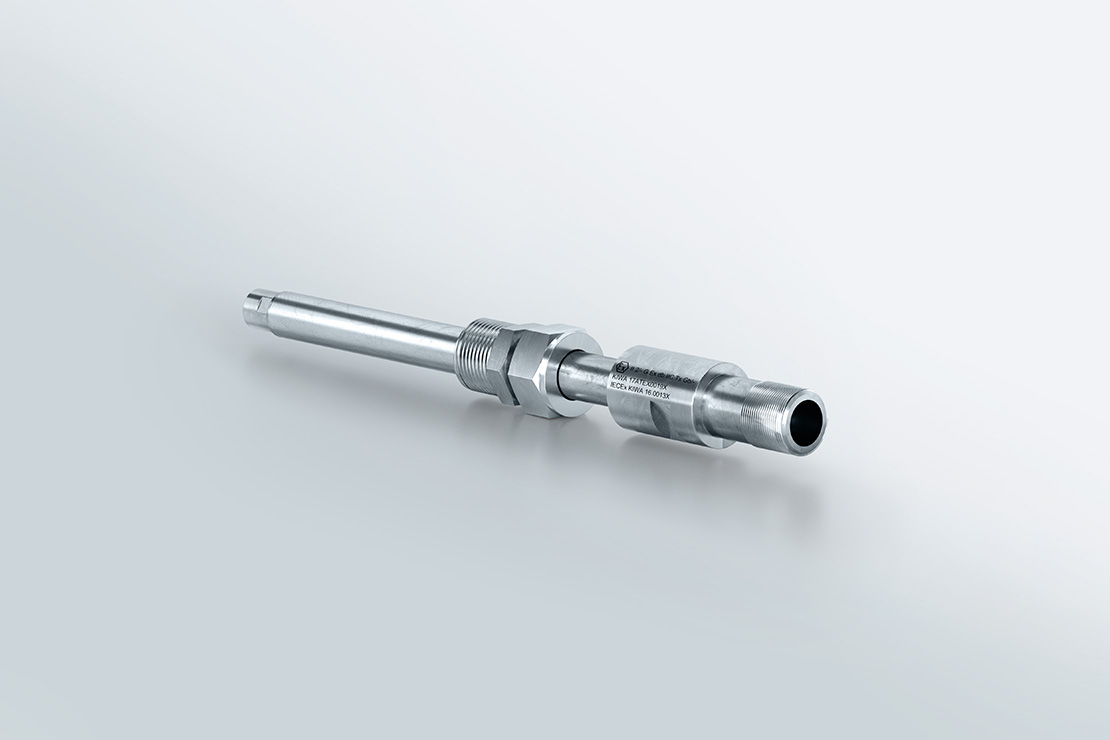

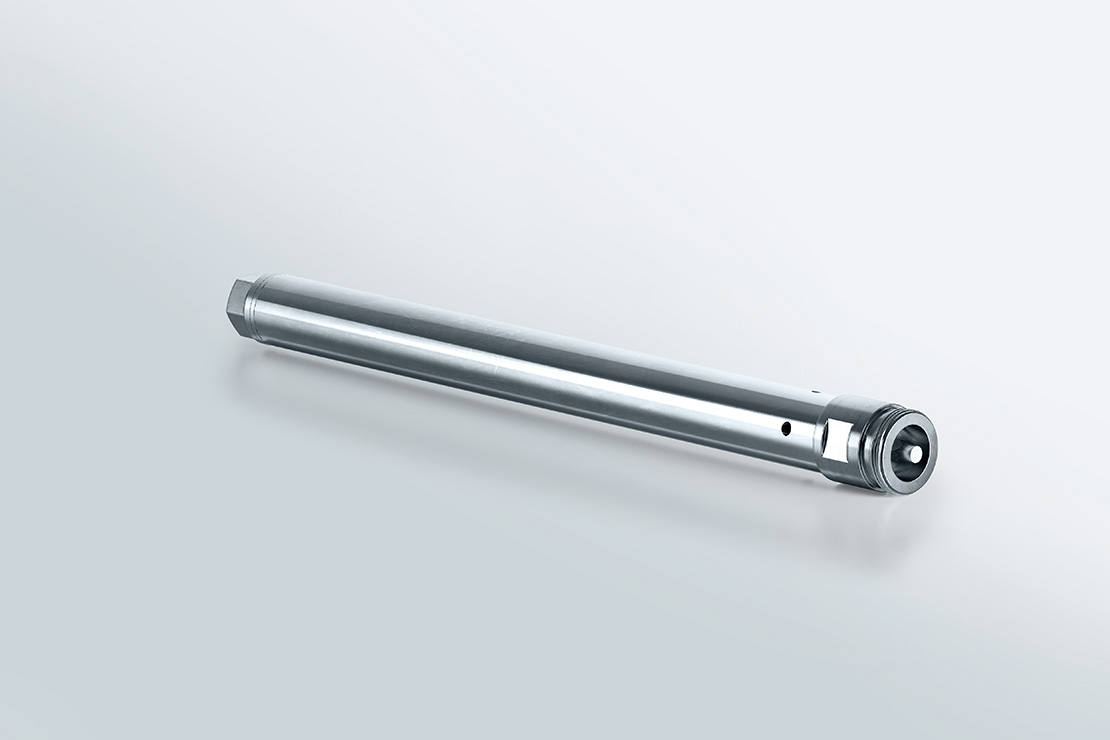

Ignition lance 12 ... 17.2 mm
High energy ignition lance, available in different lance diameters.
Functionality: An ignition lance will be connected to the high energy ignition unit via a high-energy cable with connector or junction box. The spark for the ignition will be generated at the end of the ignition lance.
Features
- Easy fit cable connectors
- Made entirely of high-temperature resistant stainless steel
- Different lance diameters
Benefits
- Reliable ignition under all weather conditions
- High-temperature resistant materials
- Long spark plug life time
- Easy fit cable connectors
- Exchangeable spark plug
Applications
- Coke oven flare ignition
- Continuous electronic spark flare ignition
Technical Data
- Technical data
- Options
| Diameter | 12 mm, 14 mm, 15 mm, 16 mm and 17,2 mm |
|---|---|
| Length | From 200 to 6,000 mm |
| Material | Mainly 310 SST |
| Electrical connection | Connector M30, option for M22 (Ex-proof) |
| Option for angled lance | |
|---|---|
| Option for angled spark plug | |
| Option for mounting brackets | |
| Option for explosion-proof (ATEX/IECEx) connection | |
| Option for thermocouple | |
| Option for radiation shield |
Accessories
- Optional
| E-LIGHT |
| E-SPARK |
| SVECU |
| Connector |
| Cables for low and high temperature |
