D-HG 400
High energy ignition device

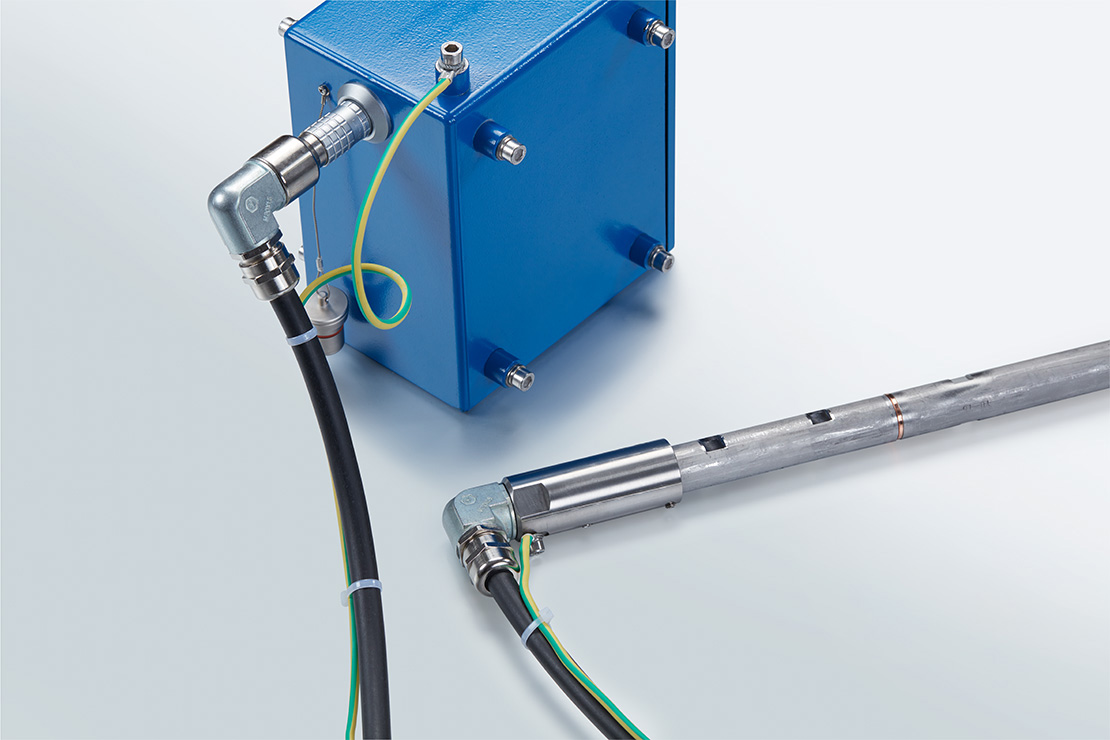

High energy ignition device with 90 J/s for direct and reliable ignition of gas and liquid fuels.
Functionality: Thyristor-controlled capacitor discharge, microcontroller-monitored ignition
Features
- Technology and design proven over more than 30 years
- Ignition power 90 J/s
- Microcontroller-monitored ignition
- Sustained short circuit-proof and electronic protection in the event of a defective ignition tip
- Relay contact for ignition feedback
- Optional retraction unit for retracting the ignition tip from the hot area
Benefits
- Reliable and safe ignition: High ignition power for direct ignition of gas and prepared oil
- Cost savings due to wear-free igniter (thyristor-controlled)
- Flexible system design: Exchangeable electronics module for compact and separate design and standardized ignition lances, ignition tips and high voltage cables
- Certified for the applications ATEX, IECEx, Ex d IIC and Ex de IIC
Applications
- Coal-fired power plants with oil pilot burners: Reliable direct ignition with well-prepared oil (steam-atomized)
- Marine: Ignition of auxiliary and special boilers on ships using gas and/or oil as fuel
- Refineries: Use in potentially explosive atmospheres for ignition of gas, oil or other liquid fuels
Technical Data
- Technical data
- Explosion protection
| Ignition power | 90 J/s |
|---|---|
| Ignition energy | 4.5 J/spark |
| Ignition frequency | 20 sparks/s (1 … 60 s)5 sparks/s (> 60 s) |
| Ignition voltage | 1,500 V |
| Connections | 1x device connection (D-HG 400-50/60) |
| Relay contacts | 1x changeover contactIgnition feedbackMax. 250 VAC, 4 A, min. 24 VDC, 100 mA |
| Interface | USB for service, requires DURAG software D-ESI 100 |
| Electrical data | 100 … 120 VAC or 220 … 240 VAC50 … 60 Hz, 200 VA |
| Ambient conditions | -20 … +60 °C (Housing 5x/6x)-20 … +55 °C (Housing 77/78Ex)-20 … +60 °C (Housing 94Ex) |
| Degree of protection | IP65 (Housing 5x/6x)IP66 (Housing 77/78Ex)IP66, NEMA 4.4X (Housing 94Ex) |
| Weight | Approx. 4.3 kg (Housing 5x/6x)Approx. 16 kg (Housing 77/78Ex)Approx. 18 kg (Housing 94Ex) |
| Housing 77/78Ex | II 2 GD Ex d IIC T5 Gb Ex tb IIIC T100 °C Db |
|---|---|
| Housing 94Ex | II 2 G Ex d IIC T6 Gb, II 2 D Ex tb IIIC T80 °C Db |
Accessories
- Recommended
- Optional
| Ignition lances |
| High voltage cables |
| Ignition tips D-HG |
| D-VE 500 |
| Flange |
