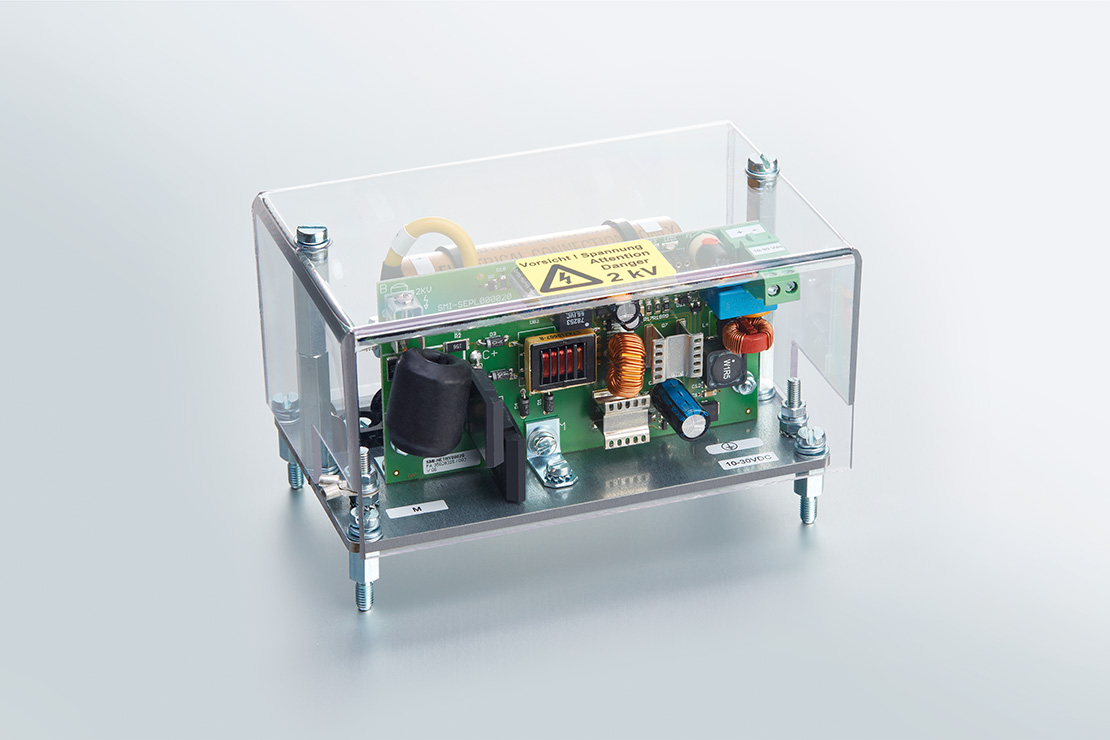

High energy ignition unit E-LIGHT

E-LIGHT
High energy ignition unit

Powerful and reliable solution for the ignition of gaseous fuels and light fuel oil. Ignition energy of 2 joules per spark.


Functionality: Thyristor-controlled capacitor discharge, microcontroller-based

  • High energy ignition
    • Ignition voltage 2,000 V for long cable routes
    • Ignition energy 2 joules per spark
  • Modular and modern electronics
    • High energy ignition module and separate power supply
    • Thyristor controlled capacitor discharge
    • Microcontroller controls ignition
  • Flexible operating voltages of 100 … 240 VAC or 24 VDC (10 … 30 VDC)
  • Customized solutions
    • Optionally with ionization and/or start relay in one device/housing
    • Several ignition modules as well as PLC for monitoring of thermocouples and control tasks in one housing
    • Lower ignition frequency and continuous operation on request
  • Reliable and safe ignition
    • High ignition voltage ensures safe ignition even over long cable lengths
    • High-energy ignition significantly less sensitive to dirt and moisture than high-voltage ignition
  • Easy replacement
    • The compact ignition module can be used in many installations directly as a replacement for old modules
  • Flexible system structure
    • High energy ignition devices in standard enclosures for safe zones or hazardous areas
    • High-energy ignition modules for installation in customer housings
    • Flexible operating voltages thanks to a separate power supply
  • Cost savings
    • Wear-free ignition device (thyristor controlled)
    • Customized solutions for the application
    • Less wear on the ignition tip
  • Ignition of ignition burners, pilot burner, lances and spark plugs
  • Technical data
  • Ionization flame monitor (optional)
  • Start relay (optional)
Ignition energy2 joules/spark
Ignition frequency3 sparks/s (standard)0.5 or 0.09 sparks/s (for continuous operation)
Ignition voltage2,000 V
Maximum sparking time180 s at 3 sparks/s> 180 s at 0,5 or 0,09 sparks/s
Electrical dataAC = 100 … 240 VAC 50 … 60 Hz, 25 VADC = 10 … 30 VDC, 13 VA
DimensionsE-LIGHT… 161609: 160 x 160 x 90 mm (DC)… 162609: 160 x 260 x 90 mm (AC)… 233311: 230 x 330 x 110 mm (AC)… GUB03A: see drawing (AC + DC)… EJB23: see drawing (AC + DC)
Ambient conditionsTemperature:… 161609 … DC: –40 … 70 °C… 162609 … AC: –25 … 70 °C… 233311 … AC: –25 … 70 °C… GUB03A … AC: –25 … + 55 °C… GUB03A … DC: –40 … + 55 °C… EJB23 … AC: –25 … + 55 °C... EJB23...DC: –40 … + 55 °CMechanical shock: 9G, EN60068-2-27 (Direction X, Y, Z)Vibration:2G, EN60068-2-6 (Direction X, Y, Z)
Degree of protectionIP66
MaterialEnclosure (safe area): Painted aluminium RAL 5017Enclosure (explosion proof): Cast aluminum painted grey RAL 9006
Explosion protectionE-LIGHT GUB03A …ATEX/IECEx II 2G Ex db IIC T6 GbE-LIGHT … EJB23ATEX/IECEx 2G Ex db IIB+H2 T5 Gb
Available forE-LIGHT… 233311-SV98H …… GUB03A-SV98H …… EJB23-SV98H …
Flame ON/OFF contactChangeoverMaximum 250 VAC, 1A
CertificationDIN EN 298 (01.11.2012)
Electrical data230 VAC, 10 VA115 VAC, 125 VAC or 250 VAC, 10 VA
Ambient conditions–30 … +60 °C
FunctionStarts the ignition while powered on
Electrical data24 VDC, 2 VA
