Nano mobility particle size spectrometer PSMPS

Nano mobility particle size spectrometer

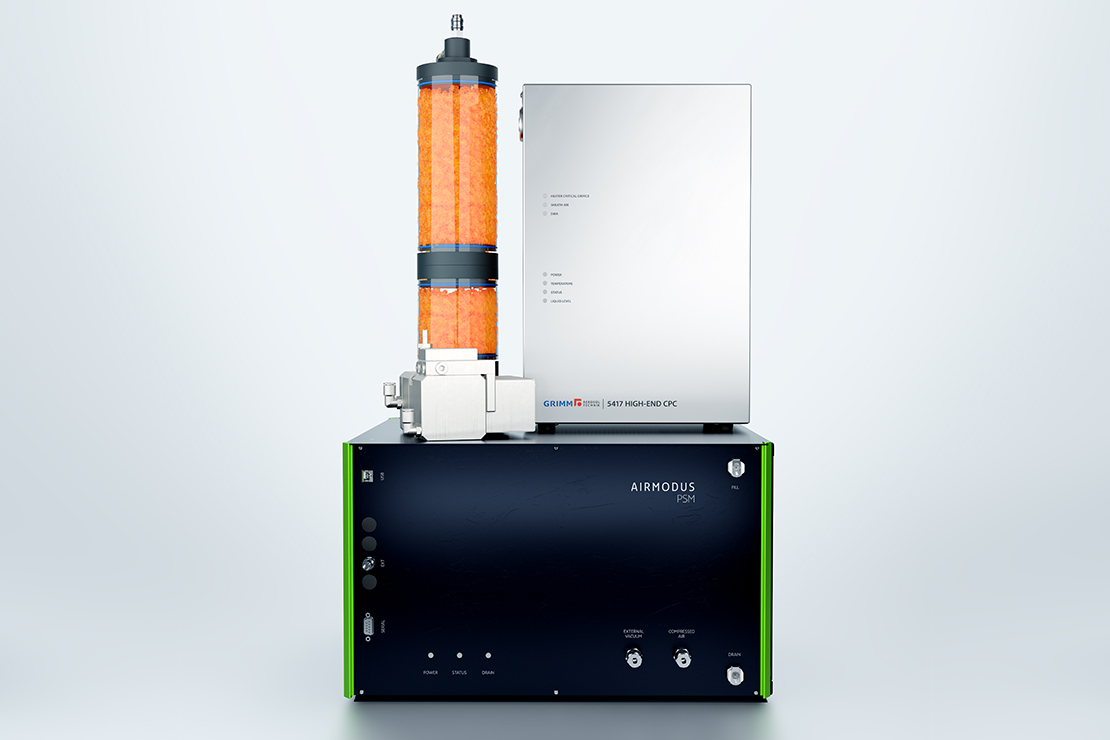

The PSMPS is a mobility particle size spectrometer with a 2-stage condensation particle counter detection system for delving into the sub-2-nm size range. It combines a Grimm SMPS+C system with the Airmodus Particle Size Magnifier (PSM).

Functionality: Nano mobility particle size spectrometer with 2-stage condensation particle counter detection system

  • Measuring number size distributions starting at 1.1 nm
  • Combination of GRIMM SMPS+C with Airmodus PSM
  • Airmodus PSM allowing expansion of SMPS+C measurement range to the smallest nanoparticles and clusters
  • Two-stage (DEG and n-butanol) CPC setup
  • Updated GRIMM DMAs with optimized nanoparticle transmission
  • Scanning, stepping and single channel mode of DMA
  • All in one solution, ready to use
  • Compact instrument setup
  • Usable with various aerosol neutralizers
  • Fully user configurable settings in our software
  • Atmospheric nucleation
  • Fundamental aerosol research
  • Environmental and climate studies
  • Studies on nanoparticle growth, coagulation and transport
  • Printer emission studies
  • Nanotechnology process monitoring
  • … and many more
  • Airmodus particle size magnifier (PSM-A10)
  • GRIMM 5417 CPC
  • DMA: GRIMM Vienna type S-DMA or M-DMA
First stage of particle detection
Working fluidDiethylene glycol
50% particle size cut-off< 1.5 nm (determined with nickel chromium particles)
Sample flow rate (QPSM)2.5 l/min
External vacuum requirement100 ... 350 mbar at NTP
External compressed air requirement1.5 ... 2.5 bar at NTPFree of particles, oil and water
Power requirements100 ... 240 VAC, 50 ... 60 HzMax. 280 W
ConnectivityUSB or RS-232
Dimensions PSM (H x W x D)29 x 45 x 46.5 cm (11.4 x 17.7 x 18.3 in)
Weight PSM12.4 kg (27.3 lbs)
Second stage of particle detection
Working fluidn-butanol
50% particle size cut-off4.0 nm (determined with tungsten oxide particles)
Sample flow rate (QCPC)0.3 or 0.6 l/min
Sheath air flow rate (QSH)3.0 or 10.0 l/min
Internal pumpsYes
Particle concentration rangeSingle count mode: Up to 150,000 particles/cm³Photometric mode: Up to 107 particles/cm³
Response time t10 … t90< 3 s
Power requirements90 ... 264 VAC, 47 ... 63 Hz80 ... 130 W
ConnectivityUSB, RS-232, analog pulse out
Dimensions 5417 (H x W x D)40 x 25 x 29 cm (15.7 x 9.8 x 11.4 in)
Weight 5417: 12.4 kg (27.3 lbs)
Particle size rangesS-DMA: 1.1 ... 55 nm at 10 l/min QSHM-DMA: 2.8 ... 155 nm at 10 l/min QSH
DMA parametersRi: 26 mmRo: 40 mmL: 15 mm (S) or 88 mm (M)
Particle size resolutionStepping mode: 45 … 255 channels Scanning mode: 64 channels per decadeLogarithmic spacing
Data outputParticle number size distribution (dN/dlogD)
Sample humidity0 ... 95% rH, non-condensing
Operating conditionsTemperature: 15 … 30 °C (50 … 104 °F) Humidity: 0 … 95% RH, non-condensing Absolute pressure range: 600 … 1050 mbar
