Solutions for aerosol research and science

Precise and compact aerosol spectrometer for the determination of dust mass fractions and particle number size distribution. Optimal solution for reliable and flexible real-time measurements for aerosol research and indoor air quality.

Compact CPC for nanoparticle counting with optimized detection efficiency and response time, with integrated sample flow pump. Different calibrations possible, e.g. for real-time monitoring of UFP in ambient air according to CEN draft standard prEN 16976:2023.

Precise nanoparticle counting instrument with the option to operate as a fully-equipped SMPS system.

The only portable instrument on the market that allows simultaneous and precise real-time monitoring of both micron-sized and nanoparticles. Designed for indoor air quality monitoring.

The PSMPS is a mobility particle size spectrometer with a 2-stage condensation particle counter detection system for delving into the sub-2-nm size range. It combines a Grimm SMPS+C system with the Airmodus Particle Size Magnifier (PSM).

Scanning mobility particle sizer with condensation particle counter. This is a versatile all-in-one solution for precise nanoparticle counting and sizing and can be combined with a GRIMM dust monitor in order to create a wide-range aerosol spectrometer. Also available as 19-inch variant.

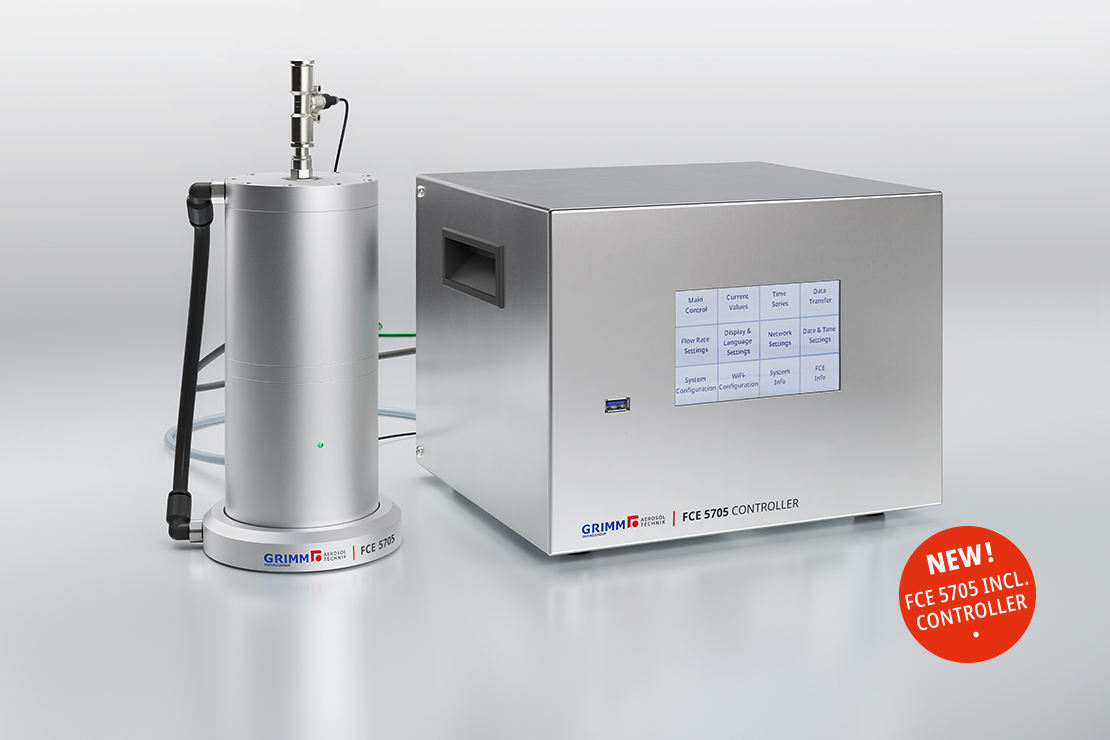

Scanning mobility particle sizer with Faraday cup electrometer. This is an all-in-one system for particle size distribution and can also be used as referencing instrument for calibration of nanoparticle counters since it is optimized to reduce the effects of mechanical shocks and pressure differences.

For splitting an aerosol flow four ways in order to provide the same aerosol number concentration to up to four measuring instruments.

The alternative to established systems: it does not require the use of radioactive radiation and can therefore be operated without a special handling licence.

This aerosol neutralizer works based on the radioactive decay of 241Am (nominal activity 3.7 MBq). It is optimized for direct connection to GRIMM DMAs and compatible with GRIMM SMPS+C and SMPS+E systems.

This aerosol neutralizer works based on the radioactive decay of 63Ni and is compatible with GRIMM SMPS+C and SMPS+E systems. It provides all benefits of radioactive source based neutralizers, however does not require a special handling licence.

This aerosol neutralizer works with soft X-Ray radiation instead of radioactivity. It is therefore not subject to transport or storage regulations and no special handling licence is necessary.

For reduction of humidity in the sheath air flow. Dries and purifies the sheath air flow to ensure correct operation of a differential mobility analyzer.

This aerosol sampler collects particles in the range 0.8 … 1,100 nm for off-line analysis on substrates that are suitable for common analytical tools, e.g. transmission electron microscopes, scanning electron microscopes or atomic force microscopes. Fit for combination with all GRIMM DMAs.

For generation of aerosols from liquids, suspensions and solutions.

These devices allow a reproducible reduction of air humidity in flowing gases or drying of aerosol particles. Both models are suitable for sample volume flows in the range 0.3 … 5 l/min.

Ready-to-use instrument for generating well-defined aerosol particles in an adjustable size range of 1.2 … 20 nm.
