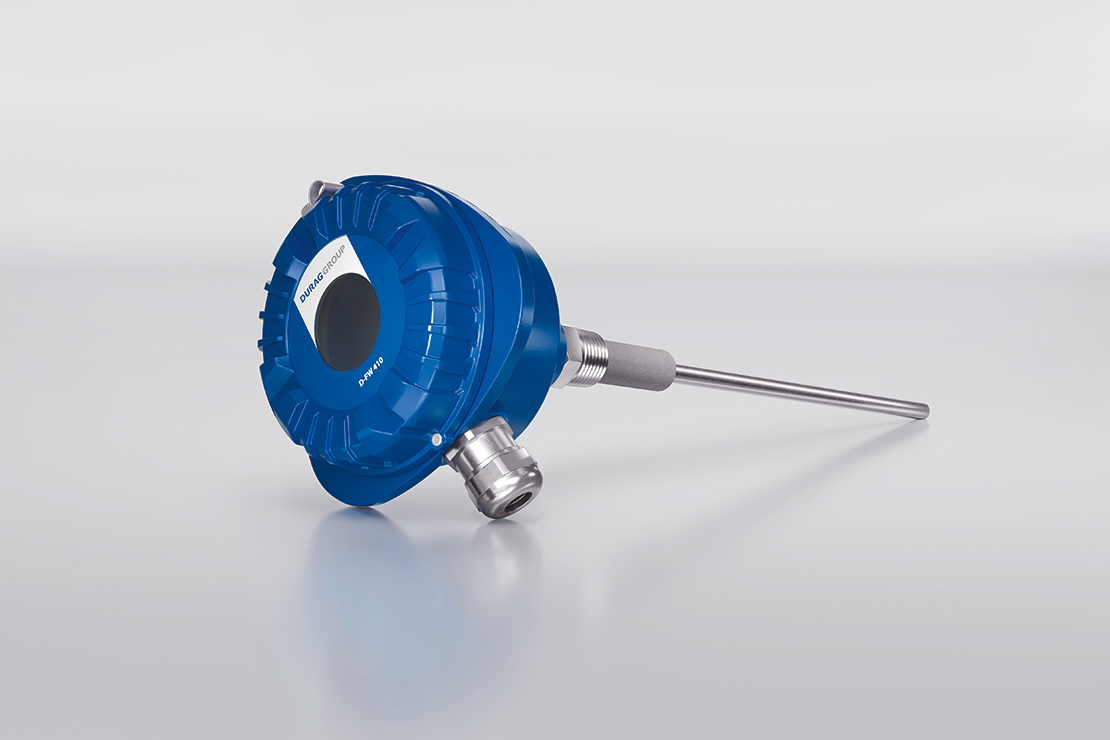

D-FW 410
Dust filter leak detector
The D-FW 410 is a highly reliable dust filter leak detector designed for monitoring filter leaks in real time. Cost-effective and low maintenance, it has been developed to continuously measure solid particles in a gas flow.
Technology: Triboelectric principle
Benefits
- Accurate detection
Measurement range with detection as low as 0.01 mg/m³, ideal for precise dust emission monitoring - Fast response to process changes
Provides immediate feedback on shifts in dust levels, allowing rapid intervention - No sample handling required
Direct in-duct monitoring streamlines installation and reduces maintenance - Low-maintenance design
Real-time monitoring with practically no drift ensures reliable performance and minimal upkeep - Long-term trend monitoring
Supports ongoing analysis of dust levels for efficient process control and preventive maintenance - Built for harsh environments
IP66 rating - Early filter leak detection
Rapid response to dust level changes helps prevent significant emissions, supporting compliance and avoiding product loss - Improved process efficiency
Continuous, real-time data on dust trends allows for optimized filtration cycles, which improves equipment longevity and reduces downtime - Cost-effective maintenance
Early detection of filter wear or failure minimizes the need for emergency repairs, and preventing costly disruptions promoting efficient maintenance - Environmental and operational responsibility
Accurate monitoring and control of emissions help industries meet environmental standards and improve overall plant efficiency
Applications
- Filter leak detection and dust arrestment plant management
Ideal for monitoring industrial filtration systems such as baghouses, cyclones, and exhaust ducts, where precise dust emission control is required - Process control and trend monitoring
Used in various industries to maintain filtration efficiency, prevent product loss, and monitor system disruptions such as ventilation interruptions or cleaning cycle issues - Broad industry suitability
Suitable for sectors requiring dust control and safety practices, such as cement, metalworking, food processing, chemical manufacturing, etc.
Technical Data
- Technical data
| Measured parameter | Solid particles in gas flow |
|---|---|
| Measuring principle | Triboelectric, in situ measurement, single-sided installation |
| Measuring range | Detection limit 0.01 mg/m³Maximum range up to several g/m³ depending on operating conditions |
| Protection rating | IP66 |
| Nominal voltage | 24 V (±10%) |
| Power consumption | 1 W |
| Output signals | Active and isolated 4...20 mA output, max. loop resistance 500 Ω |
| Communication interface | RS-485 |
| Communication protocol | Modbus RTU |
| Duct connection | Weld-on process connection, 1/2 inch, NPT, L = 34 mm (1,34″) |
| Ambient conditions | Temperature: –40 … 60 °C (–40 … 140 °F)Humidity: Maximum 90% relative humidity (non-condensing) |
| Process conditions | Temperature: Max. 250 °C (482 °F)Pressure: Max.200 kPa (29 psi)Flow speed: Min. 3 m/s (9.84 ft/s) |
| Operation and configuration | Optional: D-ESI FW software |
| Material | Housing: Aluminum, paintedProbe: Stainless steel (316L)Insulation: Polyether ether ketone (PEEK) |
| Probe dimensions | Probe length: 250 mm (9.84″), can be shortened by the user |
| Weight | 0.7 kg (1.54 lb) without probe |
